Trimmer Machine

Overview

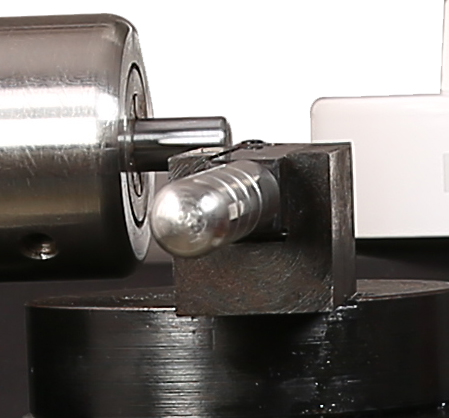

Precision Cutting of ring on the holder.
Smooth perfectly finish.
Adjustment of 10,12,14,16 and 18 mm ceramic holders.
Easy and quick operation.

Machine Specification

Weight - 25 kg (May vary based on model)
Dimension - 48 X 38 X 30 cm
Power Supply - 415 V AC, 50 Hz, 3 Phase

Key Features & Capacity

Precision Trimming

Engineered for clean girdle and edge trimming with minimal diamond wastage.

High Efficiency

Fast processing times optimized for high-volume diamond manufacturing units.

Robust Operation

Built with heavy-duty materials to ensure vibration-free, stable performance.

Frequently Asked Questions

What is the primary function of the NC Technology Trimmer Machine?

The NC Technology Trimmer Machine is designed for high-precision edge trimming, beveling, flash removal, and fine finishing across plastic, sheet metal, and industrial components, ensuring clean edges and uniform product dimensions.

What key features does the Trimmer Machine offer?

High-Speed Spindle: Engineered with a high-torque rotary system for smooth, burr-free cuts across varying material densities.
Precision Depth Adjustment: Fine micro-metric gauge control allows operators to fine-tune cutting depth with extreme accuracy.
Integrated Dust & Debris Collector: Built-in extraction port to keep work surface clean and enhance operator visibility and safety.
Vibration-Damped Base: Heavy-duty structural frame built to eliminate chatter marks and minimize operation noise during continuous runs.
Quick-Change Tooling: Tool-less blade changing mechanism designed for minimal downtime between batch setup changes.

What are the electrical and power supply specifications?

The machine operates on a standard 220V - 415V AC, 3-phase / single-phase power supply (dependent on model configuration) with energy-efficient drive motors.

What are the physical dimensions and weight of the Trimmer Machine?

Dimensions: Approx. 90 cm x 75 cm x 150 cm (varies based on bed size and custom attachments)
Weight: Approx. 250 kg to 450 kg (depending on industrial frame build and motor power)

What maintenance and blade replacements are recommended?

Regular cleaning of the trimming area, daily checks on blade sharpness, and monthly lubrication of linear guides are recommended. High-grade carbide cutting tools should be replaced or resharpened based on material density and usage cycles.

What safety features are integrated into the machine?

Emergency Stop Switch: Instantly accessible palm button to stop operations immediately.
Safety Shields: Transparent acrylic protective guards around high-speed cutting zones.
Overload Protection: Automatic thermal cut-off system to prevent motor burnouts.
